3. Agents’ Architectures

An agent’s internal architecture defines not only the types of components it comprises but also the manner in which these components interact to produce intelligent behavior. Much like the organizational structures found in human institutions, these architectures provide a framework for understanding both group structures and individual behaviors, shaping the internal processes—such as reasoning—that ultimately lead to an agent’s actions.

Internal Agent Architectures

At the heart of every autonomous system is the mechanism that supports behavior in dynamic, real-world, and open environments. The internal architectures of agents vary widely.

Some systems are built on logic-based, symbolic reasoning where explicit rules and representations dictate decisions.

Others follow a reactive approach, emphasizing rapid responses to environmental changes without relying on an internal symbolic model of the world.

There are also hybrid or layered architectures that combine reactive and deliberative strategies, along with Belief-Desire-Intention (BDI) architectures that incorporate a more structured, deliberative process.

In practice, many modern systems gravitate towards a blend of reactive, hybrid, and deliberative methods, each chosen to best meet the demands of the environment in which the agent operates.

Historical Evolution

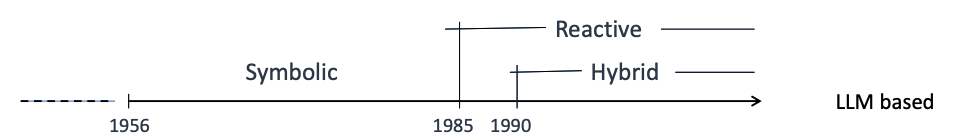

The history of agent architectures reflects an evolution of thought within the field of artificial intelligence. Between 1956 and 1985, nearly all agents were designed as symbolic reasoning systems, where explicit logical inference determined the next course of action. However, as these systems encountered the unpredictable nuances of real-world environments, their limitations became apparent. This realization sparked a shift towards reactive architectures starting around 1985, as researchers began to explore models that could respond to environmental changes more immediately. From the 1990s onward, a variety of alternative architectures emerged, most notably hybrid models that attempted to combine the strengths of both symbolic reasoning and reactive responses. An illustration of this historical progression can be seen in the evolution depicted in the figure below.

history.png700

Reactive Architectures

Reactive architectures are particularly valued for their ability to perceive environmental changes and respond with remarkable speed. In many application domains, the need for a swift reaction outweighs the benefits of fully deliberative processing, which can be too slow to apply in fast-changing scenarios. Rather than relying on a symbolic representation of the world, reactive agents make decisions based solely on the sensory information they receive, mapping perceptual inputs directly to corresponding actions. This approach is realized through networks of sensors and effectors that ensure each environmental stimulus triggers an immediate and appropriate response.

In 1991, Rodney Brooks articulated three key theses that underpinned the reactive paradigm. He argued that intelligent behavior can be generated without the need for explicit representations, that such behavior does not require abstract reasoning, and that intelligence itself is an emergent property of complex systems. His influential work on the subsumption architecture demonstrated that a hierarchy of simple, rule-like behaviors could work in tandem, with lower-level behaviors—such as obstacle avoidance—taking precedence over higher-level functions. In this design, each behavior competes with others to gain control, and the system as a whole exhibits intelligent behavior as a natural emergent outcome of these interactions.

The subsumption architecture organizes tasks in layers, where primitive behaviors form the foundation and are overridden only when higher-priority tasks emerge. This hierarchical structure ensures that essential functions are reliably executed, while still allowing the agent to adapt to more complex demands. The result is a system that, despite its simplicity, is capable of navigating highly dynamic environments with flexibility and resilience.

graph LR;
	Sensors -->| | LN["Level N"];
	Sensors -->| | L3["Level 3"];
	Sensors -->| | L2["Level 2"];
	Sensors -->| | L1["Level 1"];
	Sensors -->| | L0["Level 0"];

	subgraph "Reactive Architecture"
		direction LR
		LN;
		L3;
		L2;
		L1;
		L0;
	end

	LN -->| | Actuators;
	L3 -->| | Actuators;
	L2 -->| | Actuators;
	L1 -->| | Actuators;
	L0 -->| | Actuators;

Example

As we said, at the most fundamental level, an agent is endowed with a set of simple, prioritized behaviors that govern its actions in a dynamic environment. Consider, for instance, an explorer tasked with sample collection in an unknown terrain. The lowest-level behavior is dedicated to obstacle avoidance: whenever the agent detects an obstacle, it immediately stops and changes direction. This behavior ensures that the agent navigates safely, even in complex settings.

In addition to obstacle avoidance, the agent is programmed to handle samples intelligently. If it is carrying samples and reaches the base—often referred to as the “mother-ship”—it will drop the samples there. Conversely, if it is carrying samples but is not yet at the base, it will prioritize returning to the mother-ship to secure the collected data. When the agent encounters a sample in the environment, it stops exploring and picks up the sample. And finally, if no higher priority tasks are applicable, the agent defaults to exploring the environment in a random fashion. This layered decision-making is captured succinctly in the following code example:

while(run) {
    if (obstacle) {
        stop();
        change_direction();
    } else if (carry_samp) {
        if (at_station) {
            drop_samp();
        } else {
            move_toward_station();
        }
    } else if (samp) {
        pick_up();
    } else {
        move_randomly();
    }
}

While this implementation clearly delineates the sequence of behaviors, one might consider a multithreaded version to allow simultaneous monitoring of obstacles, sample detection, and navigation. In such an implementation, the core logic remains the same, but separate threads can manage distinct tasks concurrently, enhancing the overall responsiveness of the agent.

Advantages and Limitations of Reactive Architectures

Reactive architectures are celebrated for their simplicity, computational efficiency, and inherent robustness in the face of failures. Their design is well-suited for environments where fast reactions are critical, as decisions are made directly based on local sensory input.

However, this reliance on immediate environmental information also introduces limitations. Since decisions are made on a short-term, local basis, the agent may struggle to incorporate nonlocal or more holistic environmental cues. This short-term view can be problematic when broader context is needed for optimal decision-making.
Furthermore, the challenge of enabling reactive agents to learn remains an open question. The emergent behavior of such systems arises from the interactions between simple components and the environment, which makes it difficult to engineer specific behaviors in a controlled, systematic manner. As the number of individual behaviors increases, the dynamics of their interactions can become increasingly complex and hard to predict.

Logic-Based Architectures

In contrast to the reactive paradigm, logic-based architectures emphasize a symbol-based reasoning process. These systems require an agent to maintain an internal, symbolic representation of the world. Intelligent behavior is generated by syntactically manipulating these representations through logical deduction or theorem proving. A formal theory underpins the agent’s actions, explaining how goals are generated to satisfy its objectives and how goal-directed behavior is interleaved with reactive responses.

This approach to agent design, often referred to as symbolic AI, treats the agent as a knowledge-based system. A deliberative agent in this framework possesses an explicit model of the world, and its decisions are driven by the logical manipulation of that model. However, building such an agent involves solving two key problems.

The first, known as the transduction problem, is the challenge of converting real-world sensory inputs into an accurate and timely symbolic description. This is particularly critical in areas such as vision, speech recognition, and learning.

The second is the representation and reasoning problem, which involves symbolically encoding complex real-world phenomena and executing logical operations quickly enough to be useful in dynamic environments. The complexity of these symbol manipulation algorithms often renders them computationally intractable.

A simplified view of the process can be illustrated by the following flowchart:

flowchart TD
    A[Real world] --> B[Symbolic translation]
    B -- α --> C[Deductive reasoning α ⊢ β]
    C -- β --> D[Actuators]
    D --> A

Deductive Reasoning Agents

Building on logic-based architectures, deductive reasoning agents decide on their actions by leveraging a set of rules that encode the optimal behavior in any given situation. In this framework, a theory—denoted by ρ—is used to interpret a logical database Δ that describes the current state of the world. The set of possible actions, Ac, is evaluated such that if a particular action is logically deduced from Δ using ρ, that action is executed. Typically, the decision-making process involves first checking for actions explicitly prescribed by the current state. If no such action exists, the agent considers actions that are not explicitly excluded by its current knowledge base. If neither condition is met, the agent refrains from acting.
To summarize, let

The following pseudocode illustrates this action selection process:

/* Try to find an action explicitly prescribed */
for each a ∈ Ac do
    if Δ ⊢_ρ Do(a) then
        return a
    end-if
end-for

/* Try to find an action not excluded */
for each a ∈ Ac do
    if Δ ⊬_ρ ¬Do(a) then
        return a
    end-if
end-for

return null /* no action found */

An Example: The Vacuum World

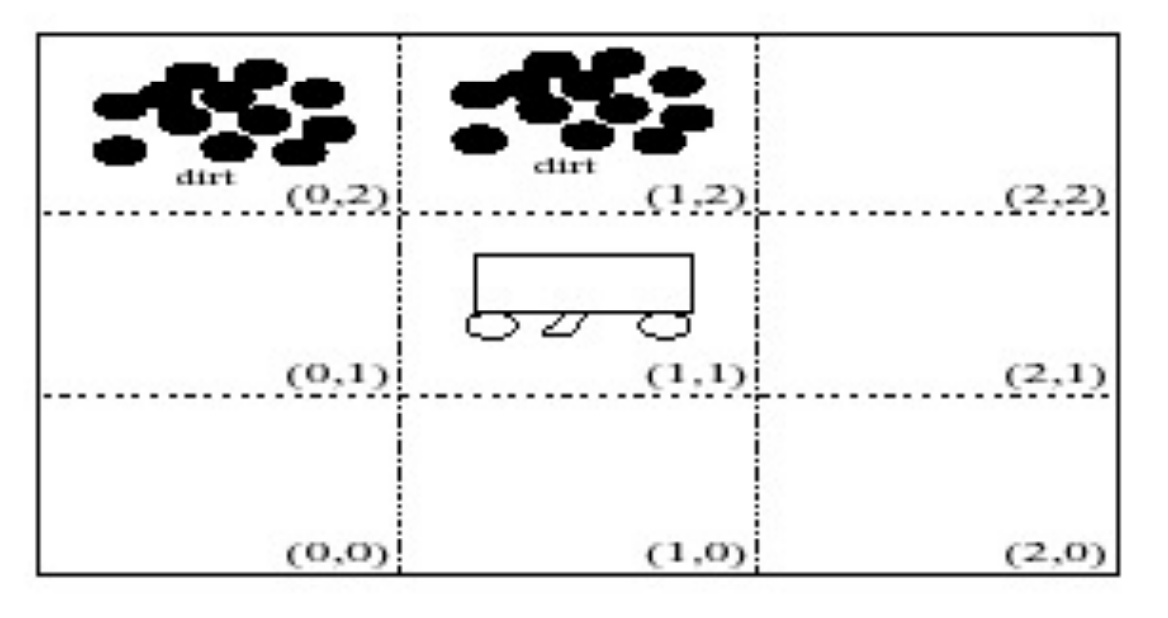

In this chapter, we delve into the classic Vacuum World problem—a fundamental example used to illustrate the principles of autonomous software agents. The scenario involves a robot tasked with cleaning dirt from a 3x3 grid. For instance, imagine dirt is present at coordinates (0,2) and (1,2), while the robot begins its operation at position (1,1).

Pasted image 20250305121151.png700

The problem domain is defined using a set of predicates:

The agent can perform actions such as turning, moving forward, or sucking up dirt, with turning defined as a clockwise rotation. So Ac = {turn, forward, suck}.

The behavior of the agent is determined by a set of logical rules that decide which action to perform based on the current state.

Prioritizing Cleaning

A critical rule ensures that cleaning takes precedence over all other actions. It can be expressed as follows:

In(x,y)Dirt(x,y)Do(suck)

If the robot is in a cell where dirt is present, the cleaning action is executed immediately. This rule is part of the reasoning framework and is distinct from the factual data in the agent’s database.

When no cleaning is needed, the agent follows a cyclic path designed to cover every grid position. A sample set of rules might be:

  1. In(x, y) ∧ Dirt(x, y) → DO(suck)
  2. [In(0, 0) ∨ In(1, 2)] ∧ ¬Facing(E) → DO(turn)
  3. [In(2, 0) ∨ In(2, 1)] ∧ ¬Facing(W) → DO(turn)
  4. [In(0, 2) ∨ In(2, 2)] ∧ ¬Facing(S) → DO(turn)
  5. In(1, 0) ∧ [Facing(W) ∨ Facing(S)] → DO(turn)
  6. In(1, 1) ∧ [Facing(E) ∨ Facing(S)] → DO(turn)
  7. In(0, 1) ∧ [Facing(W) ∨ Facing(E)] → DO(turn)
  8. DO(forward)

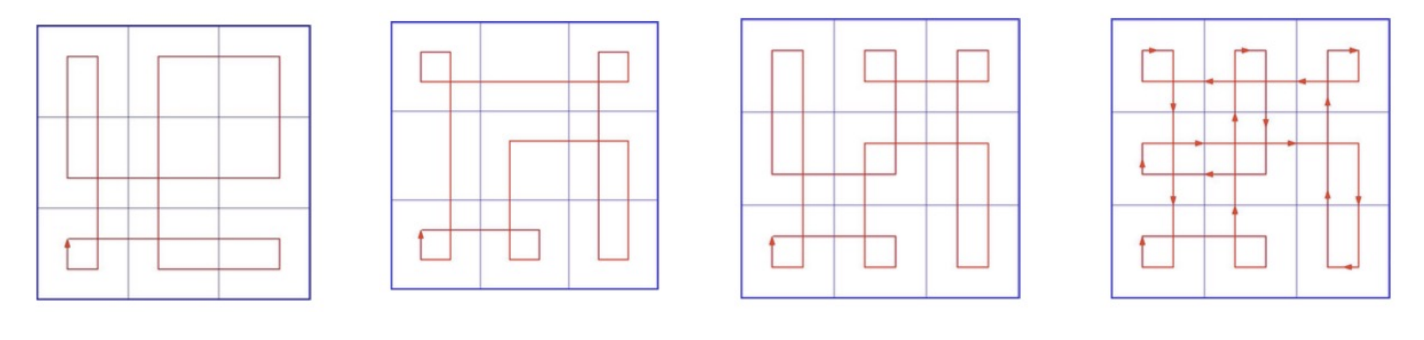

Here, the order of the rules implicitly defines their priority. The navigation rules ensure that, if the cleaning condition is not met, the agent methodically traverses the environment.

For example:

Pasted image 20250305121708.png700

Incorporating Memory and Free Movement

To enhance the model, we introduce a new predicate:

The extended reasoning framework can now be expressed as:

This extension opens the possibility of implementing memory, allowing the agent to track previously visited positions and adjust its path dynamically for improved performance.

Challenges in Logic-Based Decision Making

Decision-Making Delays

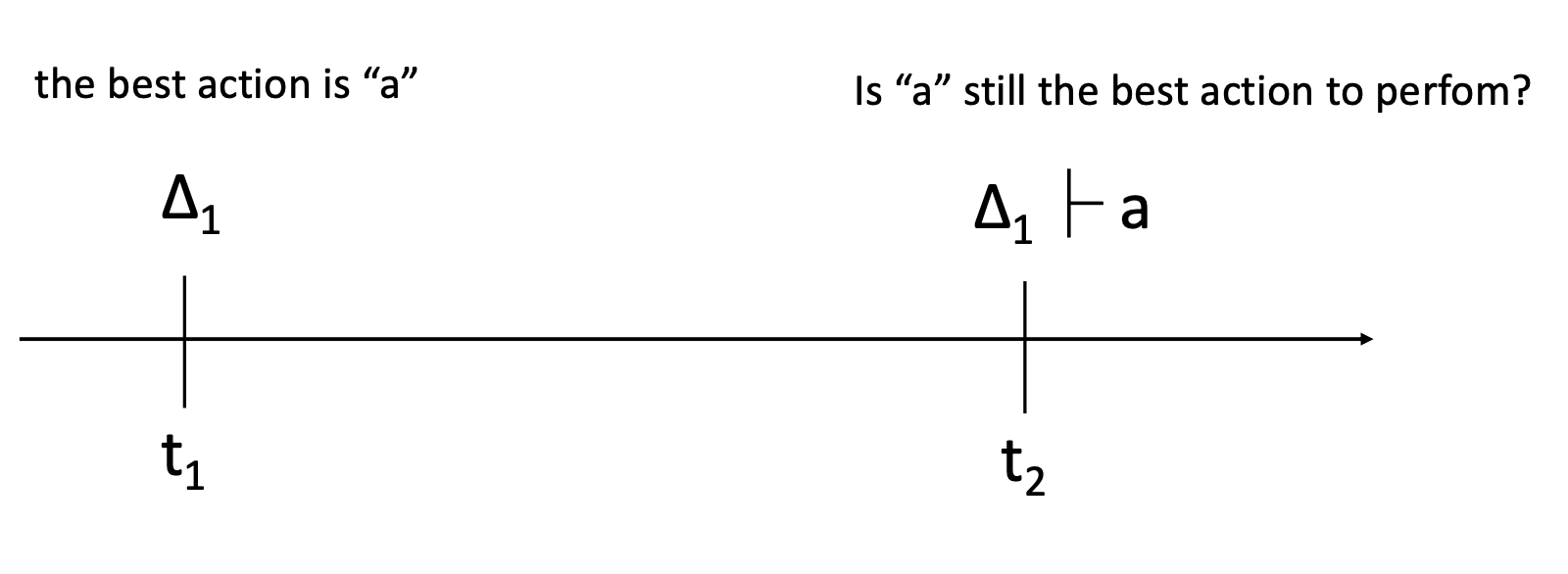

A notable issue with logic-based reasoning is the time delay between decision-making and action execution. Consider the following scenario:

If t₂ – t₁ is negligible, the chosen action remains optimal. However, in environments where changes occur rapidly, this delay can lead to suboptimal behavior. This problem is a key motivation behind alternative approaches that sacrifice some logical rigor for speed.

Pasted image 20250305122104.png700

Calculative Rationality

The concept of calculative rationality arises from this challenge. An agent exhibits calculative rationality if its decision-making mechanism selects an action that was optimal at the initiation of the decision process. In fast-changing environments, however, such a rationality model is insufficient because the optimal action may shift before execution. As a result, modern systems often adopt strategies that relax strict logical representations to achieve better real-time performance while sacrificing some theoretical elegance.

Sensor-to-Symbol Translation

Another significant challenge is translating raw sensor data into internal symbolic representations. For example, converting video camera input into a predicate such as Dirt(0,1) is non-trivial. This translation process is crucial because it bridges the gap between the physical world and the agent’s abstract reasoning framework.

Computational Complexity

Typical strategies to address these issues include:

Planning Systems in Autonomous Agents

Planning is a core capability of reasoning agents. A planning system generates a sequence of actions that transforms an initial state into a goal state. This process involves:

Applications of planning range from robot navigation to the planning of speech acts in conversational agents, illustrating the broad applicability of these concepts.

Another Example: The Blocks World

The Blocks World is a classic domain in artificial intelligence where equal-sized blocks are arranged on a table. In this environment, a robot arm is capable of manipulating the blocks using a set of actions. This example illustrates how theorem-proving techniques can be employed to construct plans for achieving specified goals.

Actions

The robot arm can perform the following actions:

Predicates

We describe the state of the world using predicates such as:

These predicates allow us to formulate the conditions of the Blocks World in a logical manner.

General Logical Truths

Certain relationships in the Blocks World are always true. For example, we can express the following axioms:

  1. If any block is being held, then the arm cannot be empty:

    x HOLDING(x)¬ARMEMPTY
  2. Any block on the table is not on top of any other block:

    x(ONTABLE(x))¬yON(x,y))
  3. If no block is on top of a given block, then that block is clear:

    x(¬yON(y,x))CLEAR(x))

Constructing Plans Using Theorem-Proving Techniques

The key challenge is to generate a sequence of actions (a plan) that transitions the world from an initial state to a desired goal state. One effective approach is Green’s Method, which extends logical reasoning with state variables.

We introduce a function:

DO:A×SS

which maps an action and a state to a new state. For example, the expression

DO(UNSTACK(x,y),s)

denotes the new state resulting from unstacking block x from block y in state s.

Characterizing the UNSTACK Action

To formalize the effects of UNSTACK, we can write:

CLEAR(x,s)ON(x,y,s)(HOLDING(x,DO(UNSTACK(x,y),s))CLEAR(y,DO(UNSTACK(x,y),s)))

Suppose the initial state s0 satisfies:

ON(A,B,s0)CLEAR(A,s0)

We can then prove that:

HOLDING(A,DO(UNSTACK(A,B),s0))CLEAR(B,DO(UNSTACK(A,B),s0))

For clarity in our proofs, we denote:

s1=DO(UNSTACK(A,B),s0)

so that we have:

HOLDING(A,s1)CLEAR(B,s1)
Characterizing the PUTDOWN Action

Similarly, we characterize PUTDOWN by:

HOLDING(x,s)ONTABLE(x,DO(PUTDOWN(x),s))

Now, consider the plan that involves first unstacking block A from block B and then putting A down on the table. We denote the intermediate and final states as:

s1=DO(UNSTACK(A,B),s0)s2=DO(PUTDOWN(A),s1)

Thus, we can prove:

ONTABLE(A,s2)

In other words, the constructive proof demonstrates the following nested action sequence:

ONTABLE(A,DO(PUTDOWN(A),DO(UNSTACK(A,B),s0)))

This nested expression shows the plan in two steps:

  1. UNSTACK(A,B)
  2. PUTDOWN(A)

So, given an initial database containing:

ON(A,B,s0)ONTABLE(B,s0)CLEAR(A,s0)

and a goal state expressed as

s:ONTABLE(A,s)

we can use theorem proving to find the plan:

ONTABLE(B,DO(PUTDOWN(A),DO(UNSTACK(A,B),s0)))

Hybrid Architectures in Autonomous Agents

While theorem-proving provides a solid theoretical foundation for planning, practical systems often incorporate hybrid architectures to handle real-world complexity.

Deliberative vs. Reactive Components

Hybrid architectures combine two complementary parts:

This structuring naturally leads to the idea of a layered architecture:

The BDI Architecture

The Belief-Desire-Intention (BDI) architecture is one of the most popular models in the agent community (Rao and Georgeff, 1995). Its influence is evident in numerous implementations over the years, including PRS (1987), dMARS (1998), JAM (1999), Jack (2001), and JADEX (2005). Originating in the 1980s as a model of practical reasoning, BDI captures the challenges posed by dynamic, unpredictable environments. These environments are characterized by:

A fundamental assumption of the BDI model is the use of plans. In this context, a “plan” is understood as a known recipe—a piece of practical know-how—rather than a freshly chosen course of action.

Beliefs

Beliefs represent the agent’s information about the world, including its past experiences. There are several reasons for this:

Because the stored information might be imperfect or incomplete, we refer to it as beliefs rather than knowledge. In epistemic logic, knowledge implies that if an agent knows a proposition PP, then PP is true. In contrast, beliefs are understood to be a best-effort approximation of reality. In addition, agents typically cache plans (or “recipes”) for similar reasons—to save on computational resources when encountering recurring situations.

Desires (Goals)

Desires capture the agent’s preferred end states. For example, an agent might have the desire to "graduate" or "complete a project." These desires explain why certain parts of the agent’s code execute, providing a rationale behind its actions. Desires are particularly useful in the following contexts:

In this way, desires serve as motivational anchors that guide the agent’s behavior.

Intentions

While beliefs and desires form the informational and motivational base, intentions capture the commitment to a specific course of action. They are essentially the instantiated plans that the agent has chosen to follow. Intentions are crucial for several reasons:

Intentions are what transform abstract goals into concrete actions.

Commitment, Re-Planning, and Options

An important consideration in the BDI framework is the handling of commitment and re-planning when the environment changes. A key question arises: if an agent is in the middle of following an intention and the world changes, should it re-plan?

Neither extreme is ideal. In practice, agents reduce the number of options by:

For instance, an agent might intend to return a library book in the afternoon and then go to the movies in the evening. Given that the library is at a fixed location (e.g., UNITN@Albere), the agent may plan the remainder of its day based on that assumption.

Implementation in Jack

Jack is a notable implementation of the BDI architecture that illustrates the distinction between an architectural model and its concrete implementation. In Jack:

This separation of concerns allows Jack to efficiently manage the complexities of a dynamic environment while still following the BDI principles.

Summary and Process Flow

The BDI cycle can be visualized as a flow of information from external events through to action execution. The following Mermaid diagram summarizes the process:

graph TD
    A("External Events") --> B[New Events]
    B -->|Unification| C[Plan Library]
    C -->|Meta Statement| B
    C -->|Intend a Plan| D[Intention Structure]
    D -->|Execute| E[Intention Execution]
    E -->|Modify Intention Structure| D
    E -->|Post New Events| B
    E --> F("Actions")

This diagram captures the cycle of sensing, planning, intention formation, and action execution, which is at the heart of the BDI approach.
